AK Rear Sight Mount
Opis

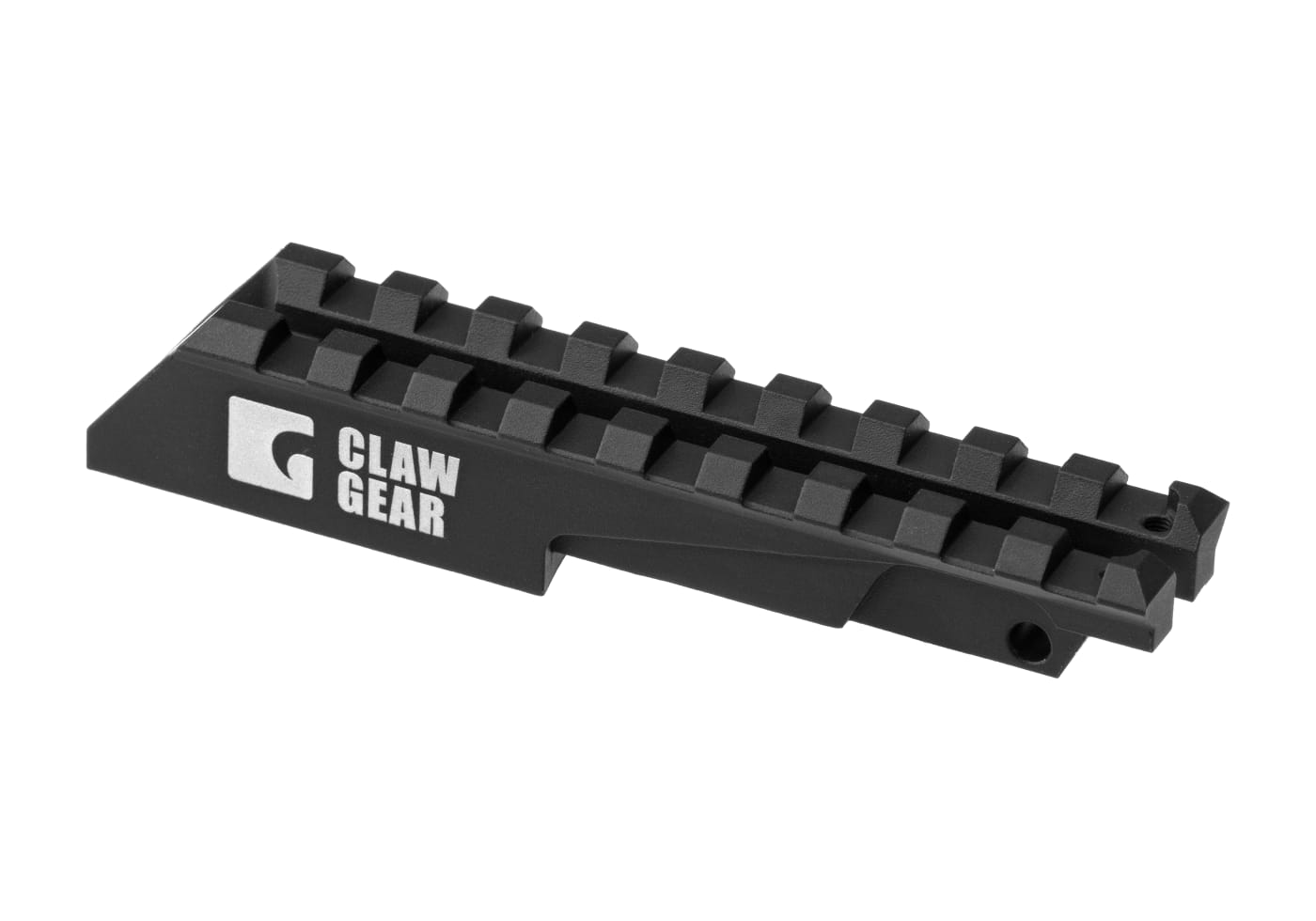

AK47 Rear Sight Mount

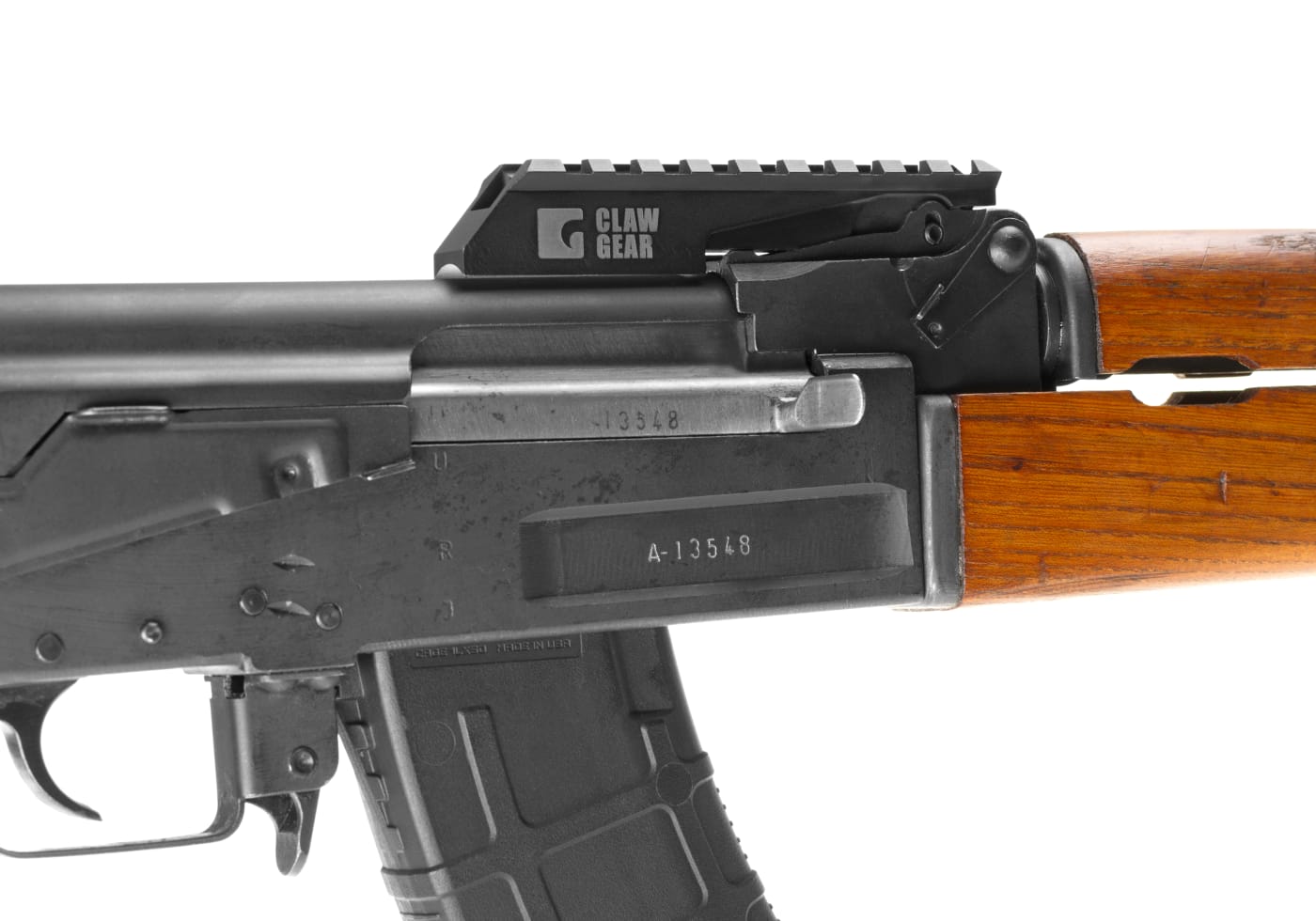

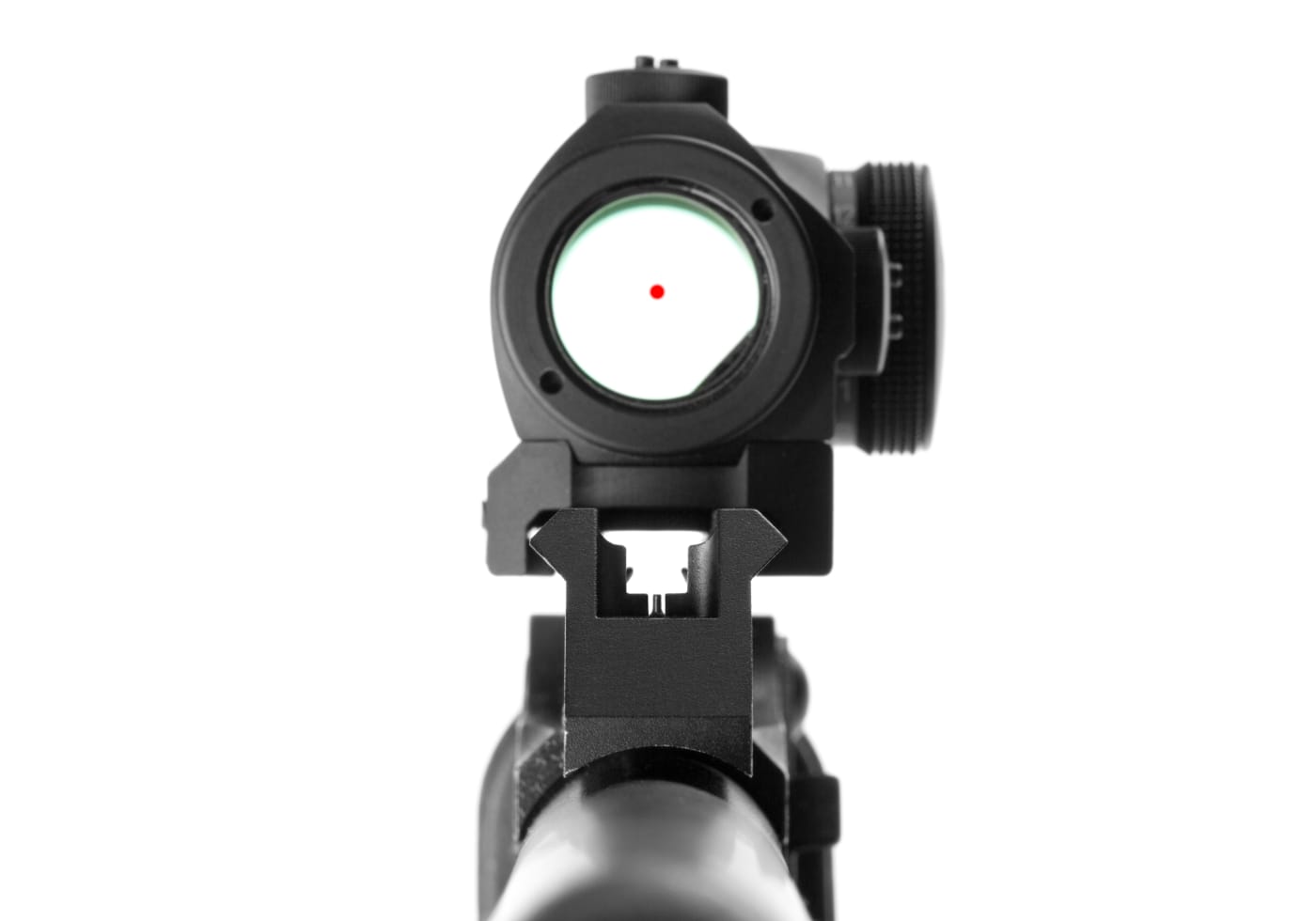

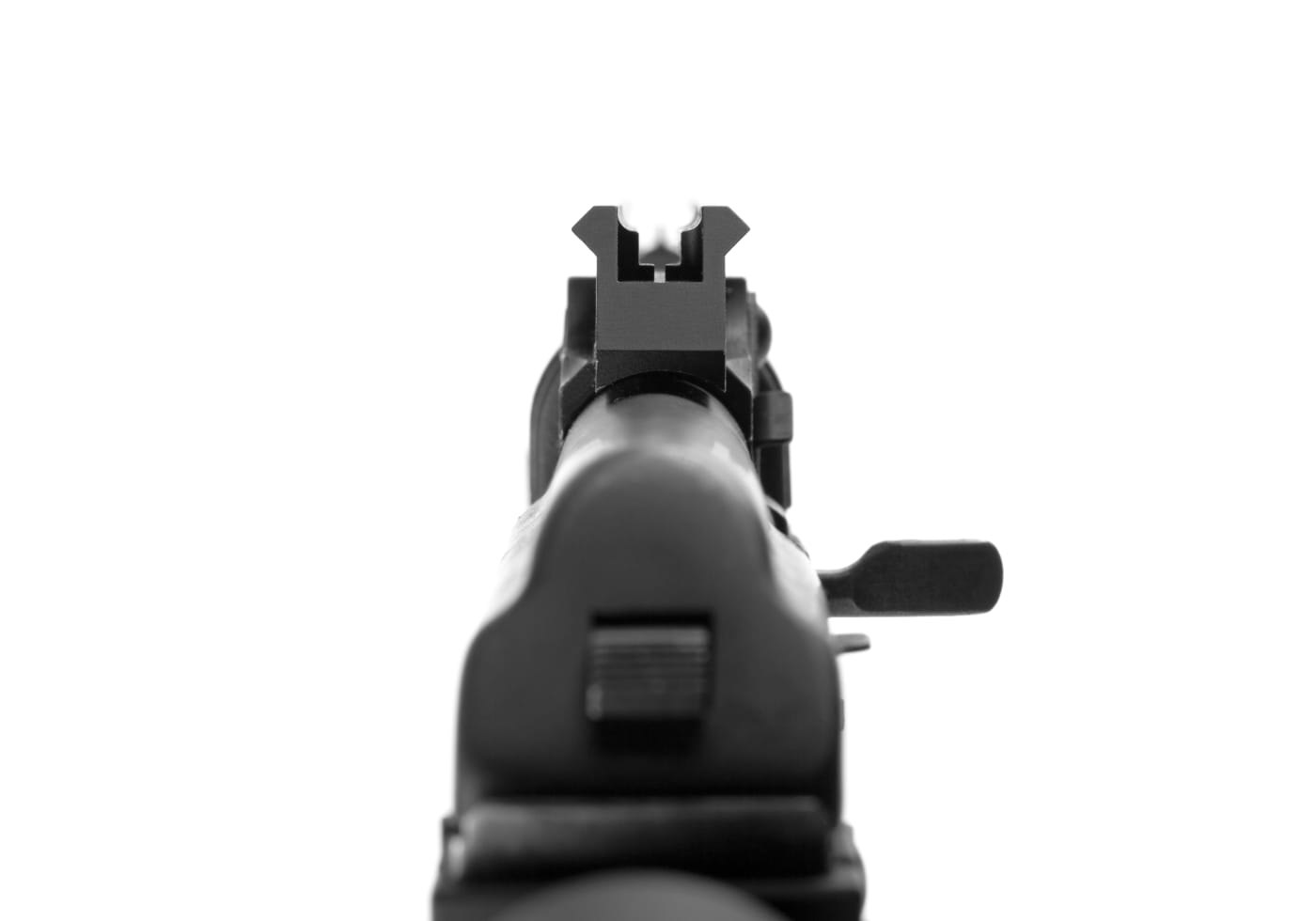

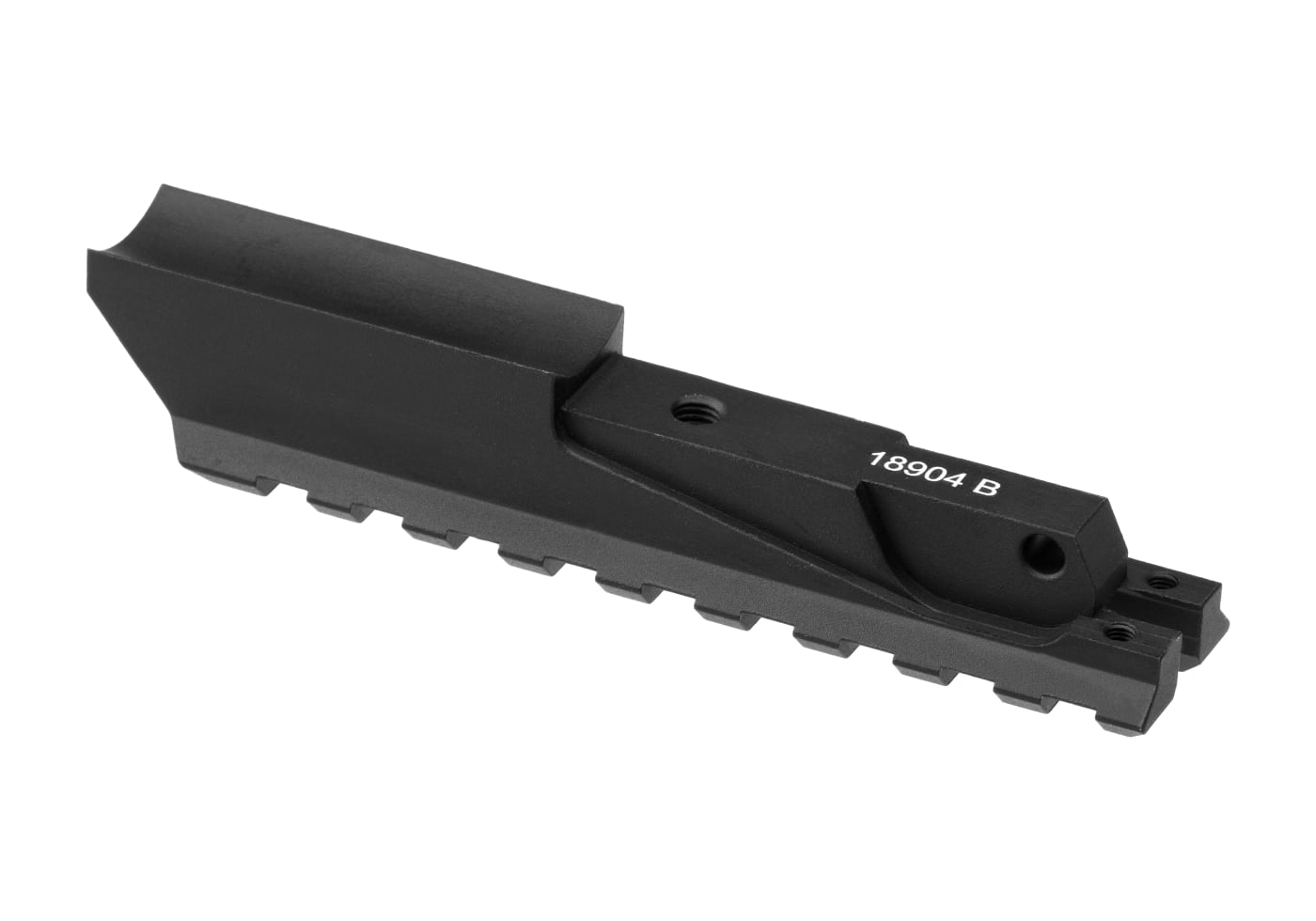

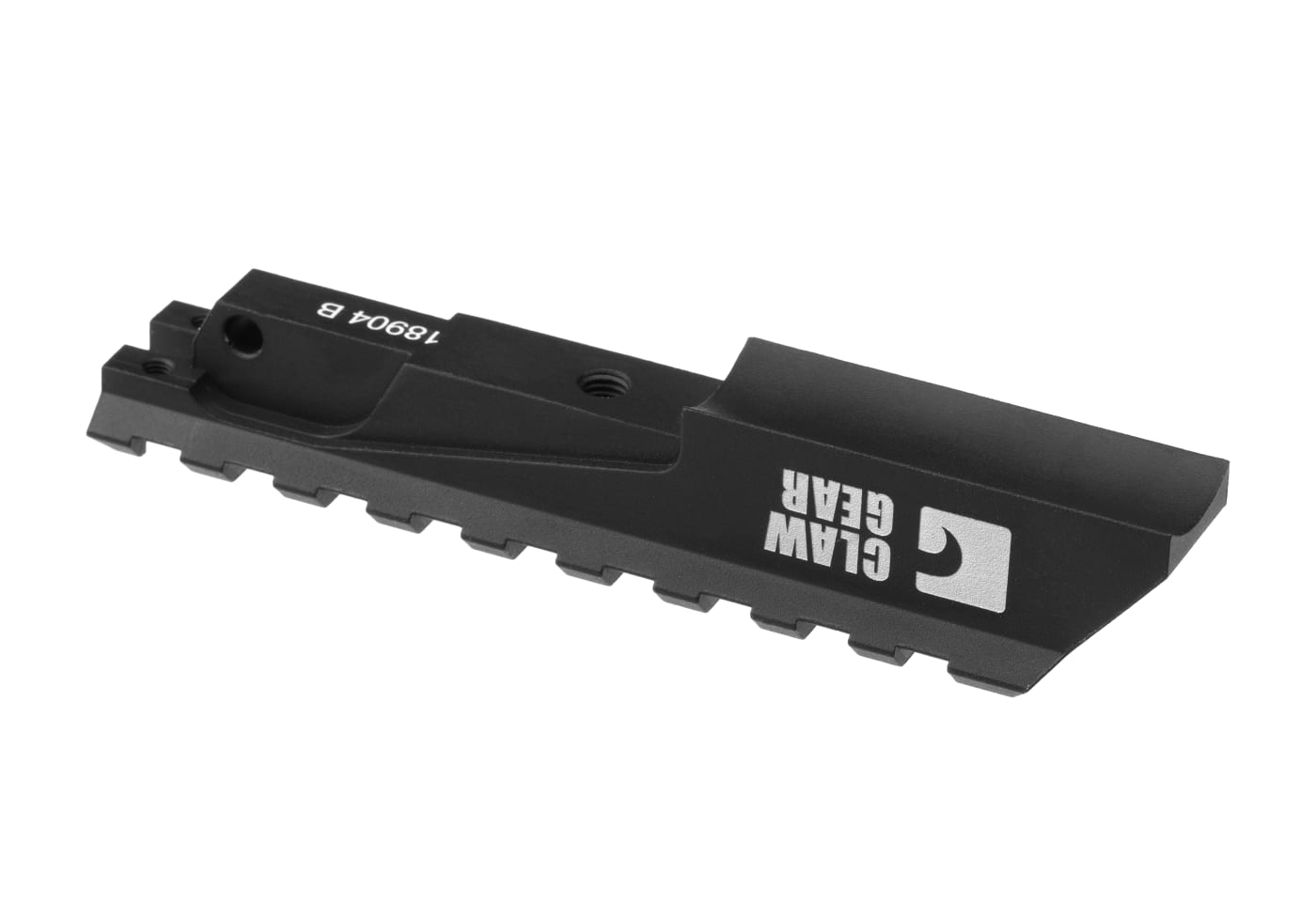

The Clawgear AK47 Rear Sight Mount is a precision upgrade for AK platforms with a standard rear sight base. It replaces the original iron sight and enables direct mounting of modern aiming solutions such as red dot or holographic optics. An integrated backup sight takes over the role of the original rear sight and ensures continued use of the rifle even without optics.

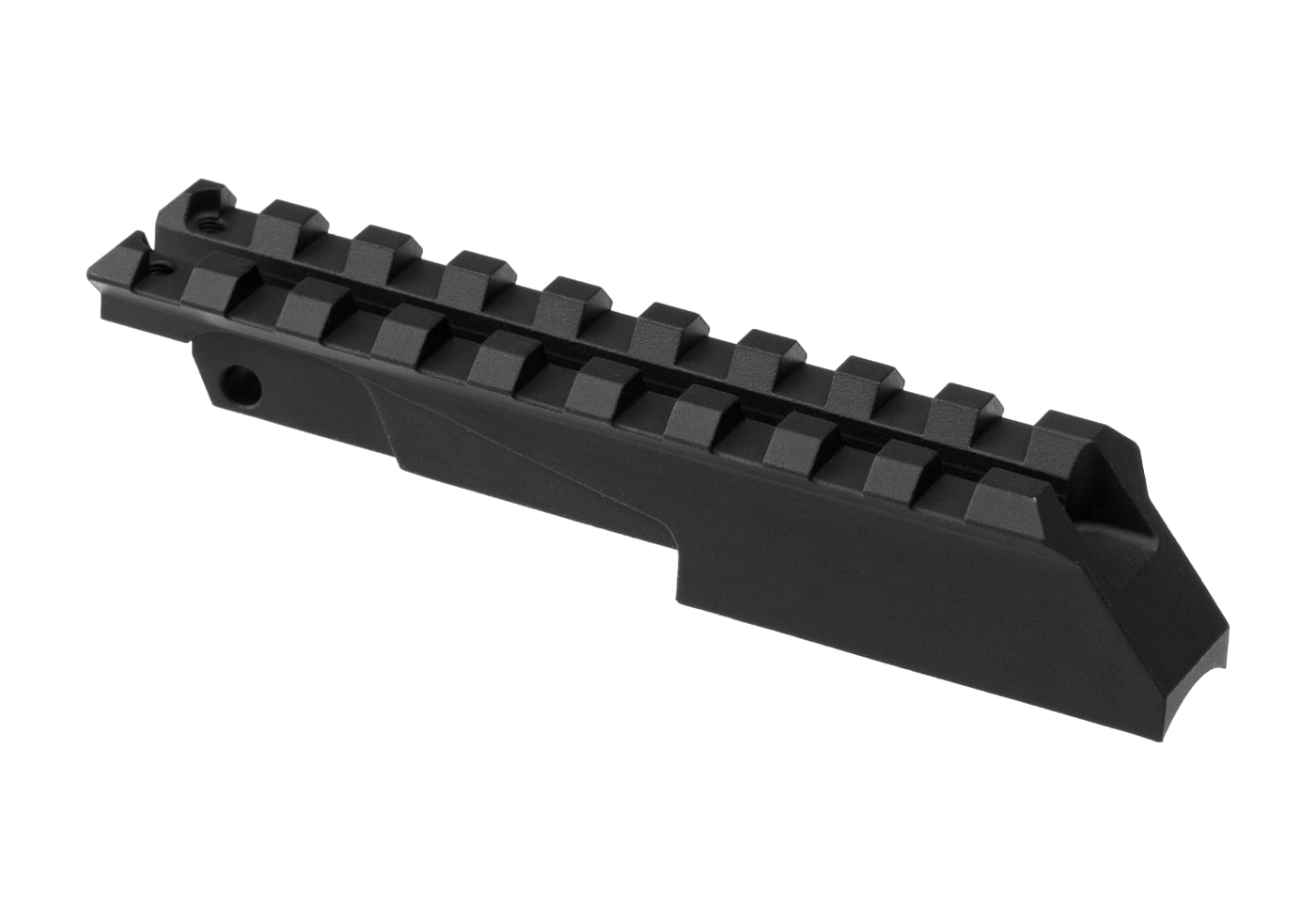

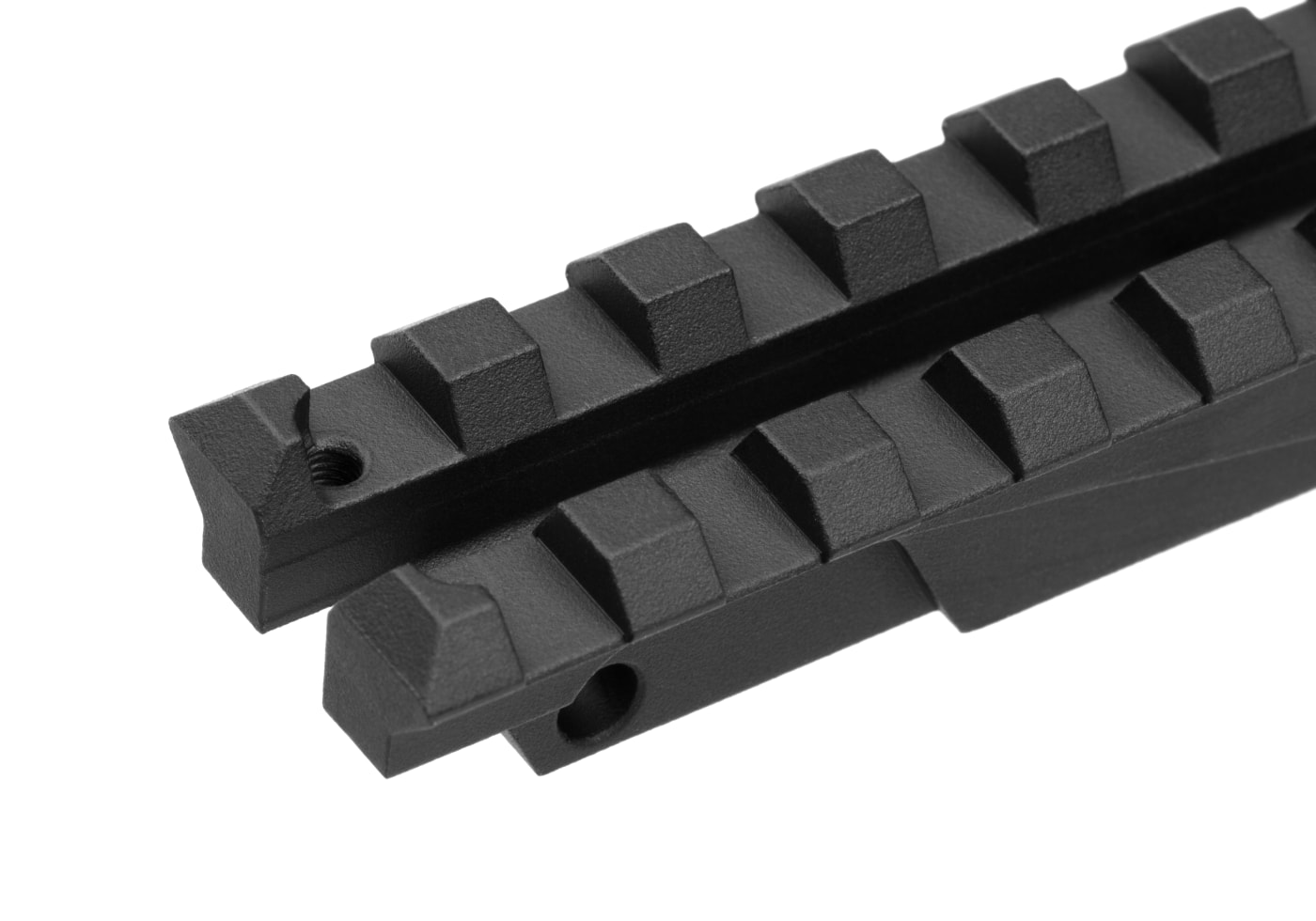

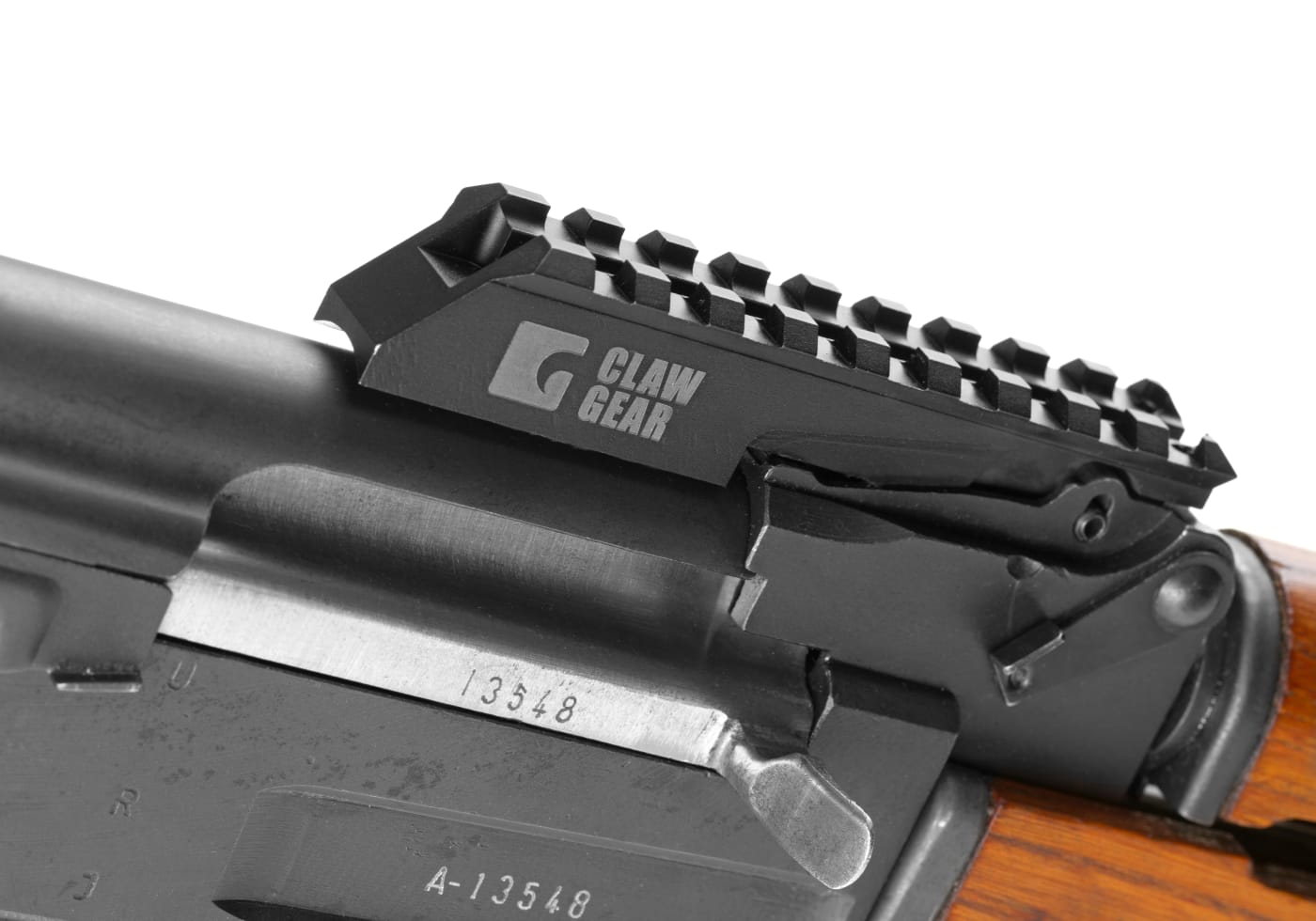

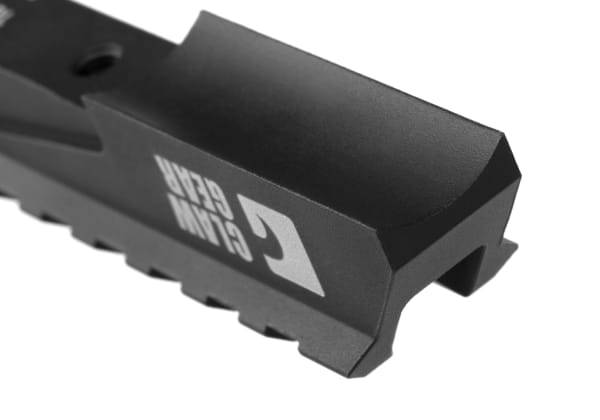

Manufactured from MIL-SPEC Type III hard-anodized aluminum, the mount features a 9-slot Picatinny interface (NATO STANAG 4694) and offers high strength in a lightweight design. The contoured underside perfectly matches the receiver cover, allowing field-stripping of the rifle even when the mount is installed. Three adjustment screws enable precise alignment with the bore axis.
Technical Specifications
| Type | Optic mount with integrated backup sight |
|---|---|
| Mounting System | Picatinny Rail (9 Slots, NATO STANAG 4694) |
| Material | High-strength aluminum, hard-anodized (MIL-SPEC Type III) |
| Function | Replaces factory rear sight, includes fine adjustment screws |

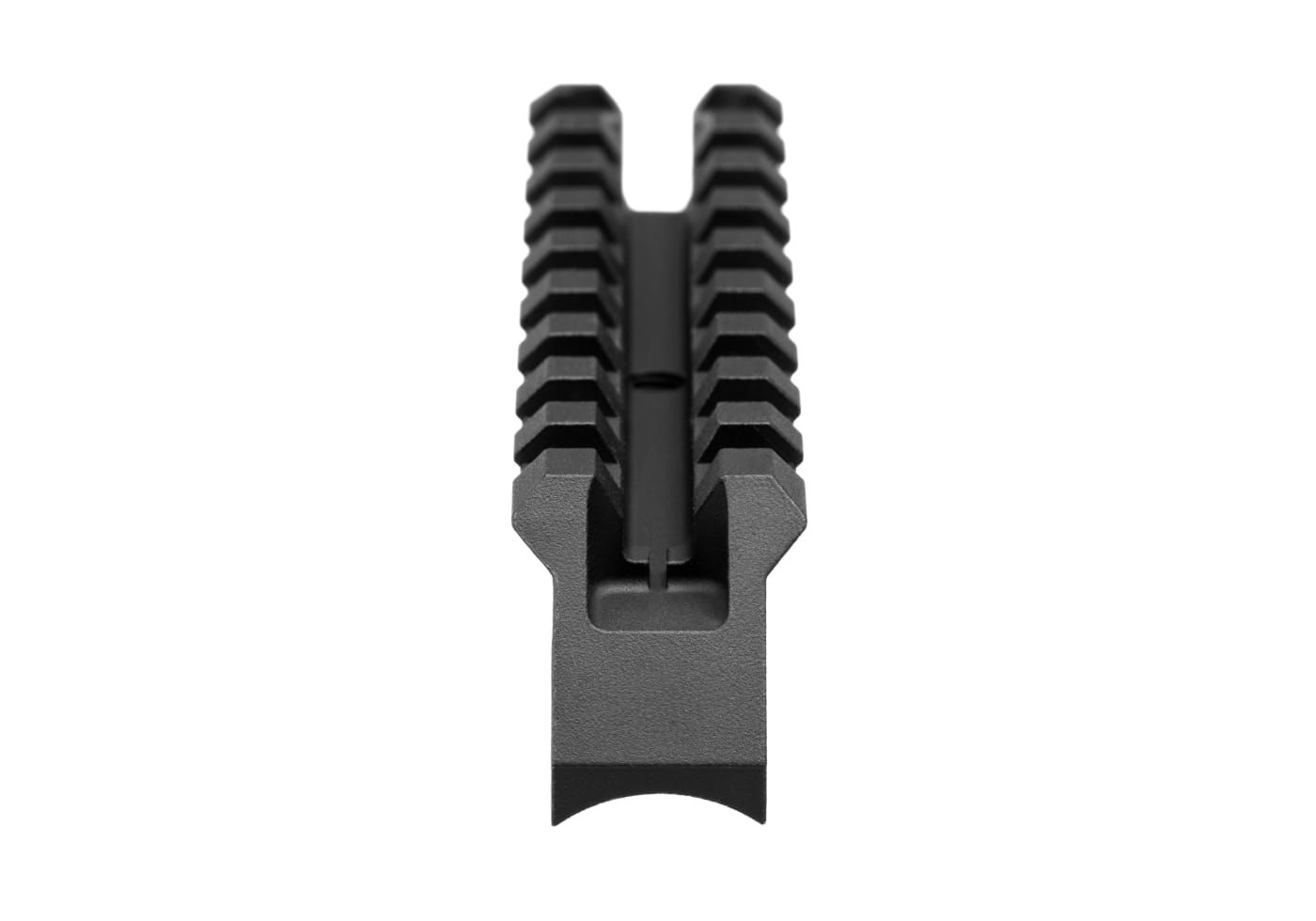

| Backup Sight | Integrated, usable with or without optic |
| Compatibility | AK47, AKM, RPK, AK74 and similar platforms with Mauser-style rear sight |
| Not Compatible | SKS rifles |
| Weight | 55 g |
| Length | 110 mm |
| Width | 19.7 mm |
| Height | 21.2 mm |
Dodatkowe informacje
- System szynowy:
- Szyna Picatinny

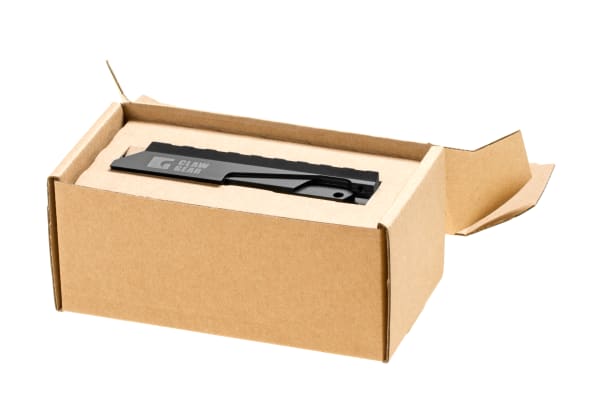

Wymiary i waga opakowania
- Długość:
- 11.1 cm
- Długość zapakowana:
- 12.3 cm
- Szeroki:
- 1.9 cm
- Szerokość zapakowana:
- 6.3 cm
- Wysokość:
- 2.1 cm
- Wysokość zapakowana:
- 6.2 cm
- Waga:
- 0.056 kg
- Waga w opakowaniu:
- 0.113 kg
