M-LOK 10 Slot Rail QD integrated
Opis
M-LOK Picatinny Rail – 10 Slots + QD
The Clawgear M-LOK Picatinny Rail with 10 slots and integrated QD socket is designed for professional users who require a robust, modular, and corrosion-resistant mounting solution. Fully M-LOK compatible, it features a continuous Picatinny profile in compliance with NATO STANAG 4694 / Mil-Std 1913—ideal for mounting optics, grips, lasers, or light modules.

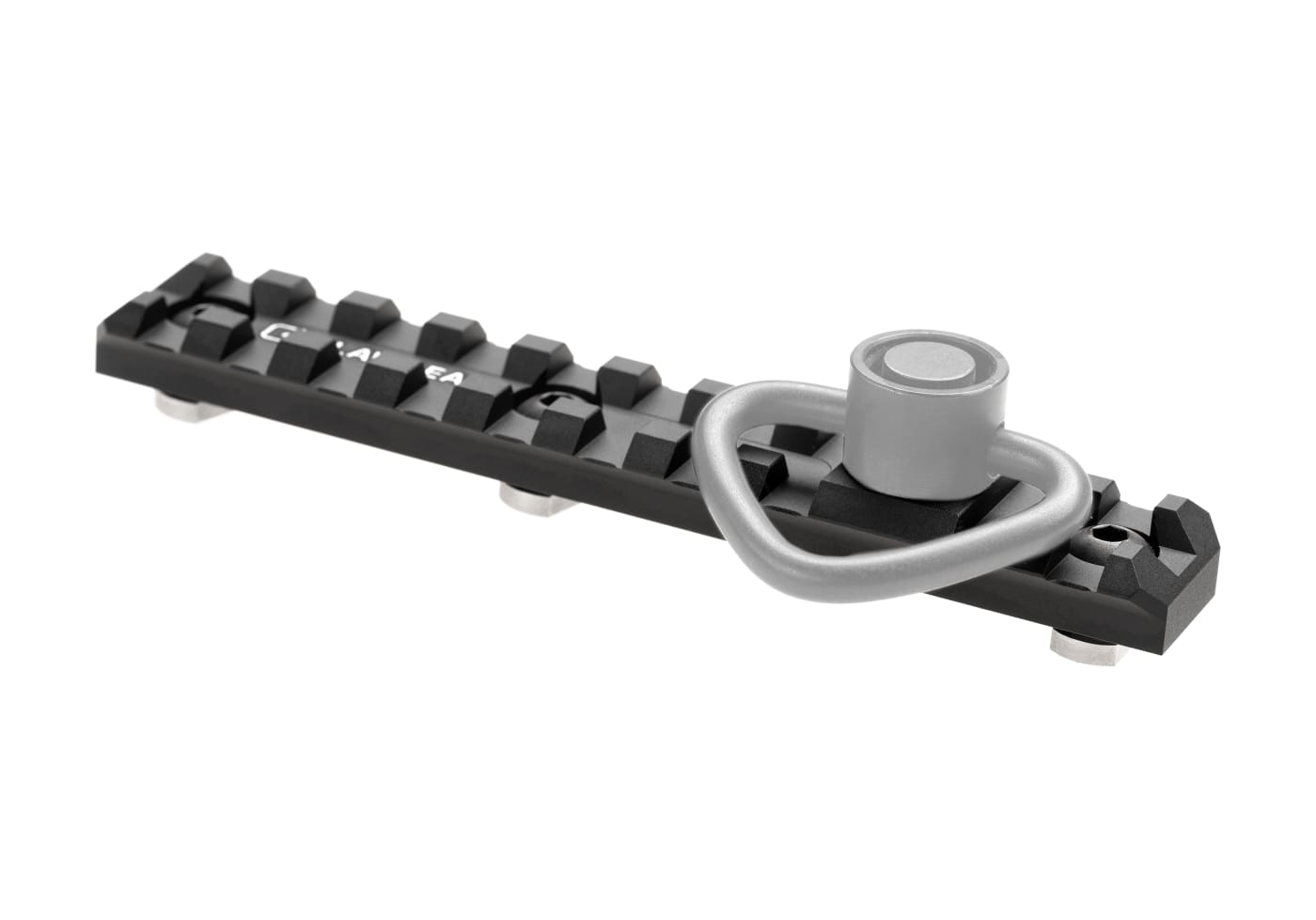

This variant includes a Quick Detach (QD) socket for direct attachment of push-button sling swivels, making it ideal for front sling attachment or bipod mounting.
Made from high-strength aluminum and hard anodized to MIL-SPEC Type III, the rail provides maximum durability and wear resistance. The included stainless steel T-Nuts prevent corrosion even after repeated removal. Chamfered edges reduce the risk of snagging on gear or clothing.
Installation Note: Maximum torque: 4 Nm (35 in/lb). If no torque wrench is available, use the short end of the hex key for controlled tightening.
Technical Specifications
| Type | M-LOK Picatinny Rail with QD socket |
|---|---|
| Slots | 10 slots |
| Length | 4.88″ / 124 mm |
| Material | High-strength aluminum, stainless steel T-Nuts |
| Finish | Black, MIL-SPEC Type III hard anodized |
| Interface | Picatinny (NATO STANAG 4694), M-LOK compatible |
| QD Feature | Integrated QD socket for push-button sling swivels |
| Weight | 42 g |

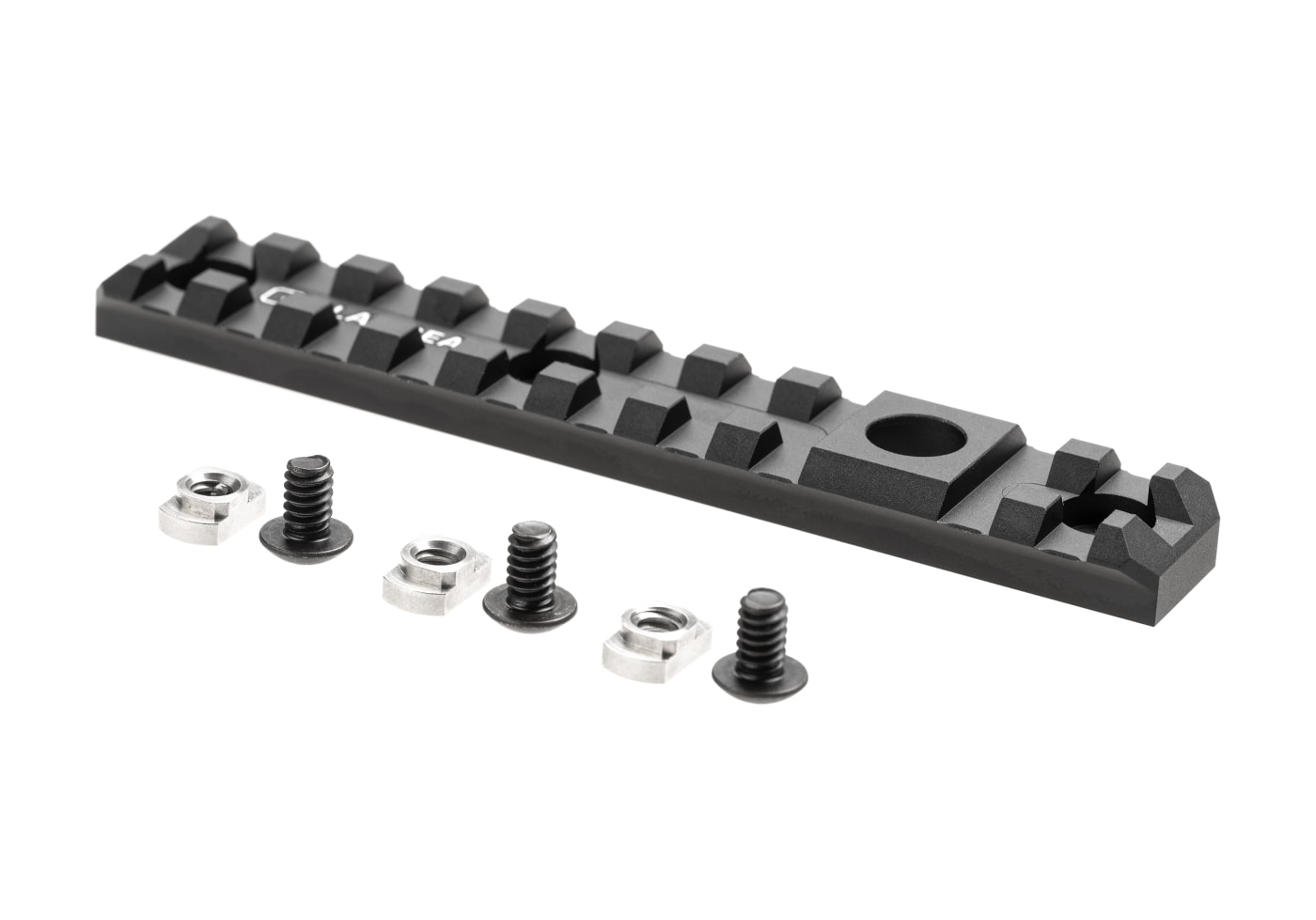

| Included | Mounting screws & stainless steel T-Nuts |
| Features | Chamfered edges, corrosion resistant, tool-free disassembly |
Wymiary i waga opakowania
- Długość zapakowana:
- 17 cm
- Szerokość zapakowana:
- 10.7 cm
- Wysokość zapakowana:
- 1 cm
- Waga:
- 0.045 kg
- Waga w opakowaniu:
- 0.053 kg
