Clawgear
M-LOK 5 Slot Rail
Opis

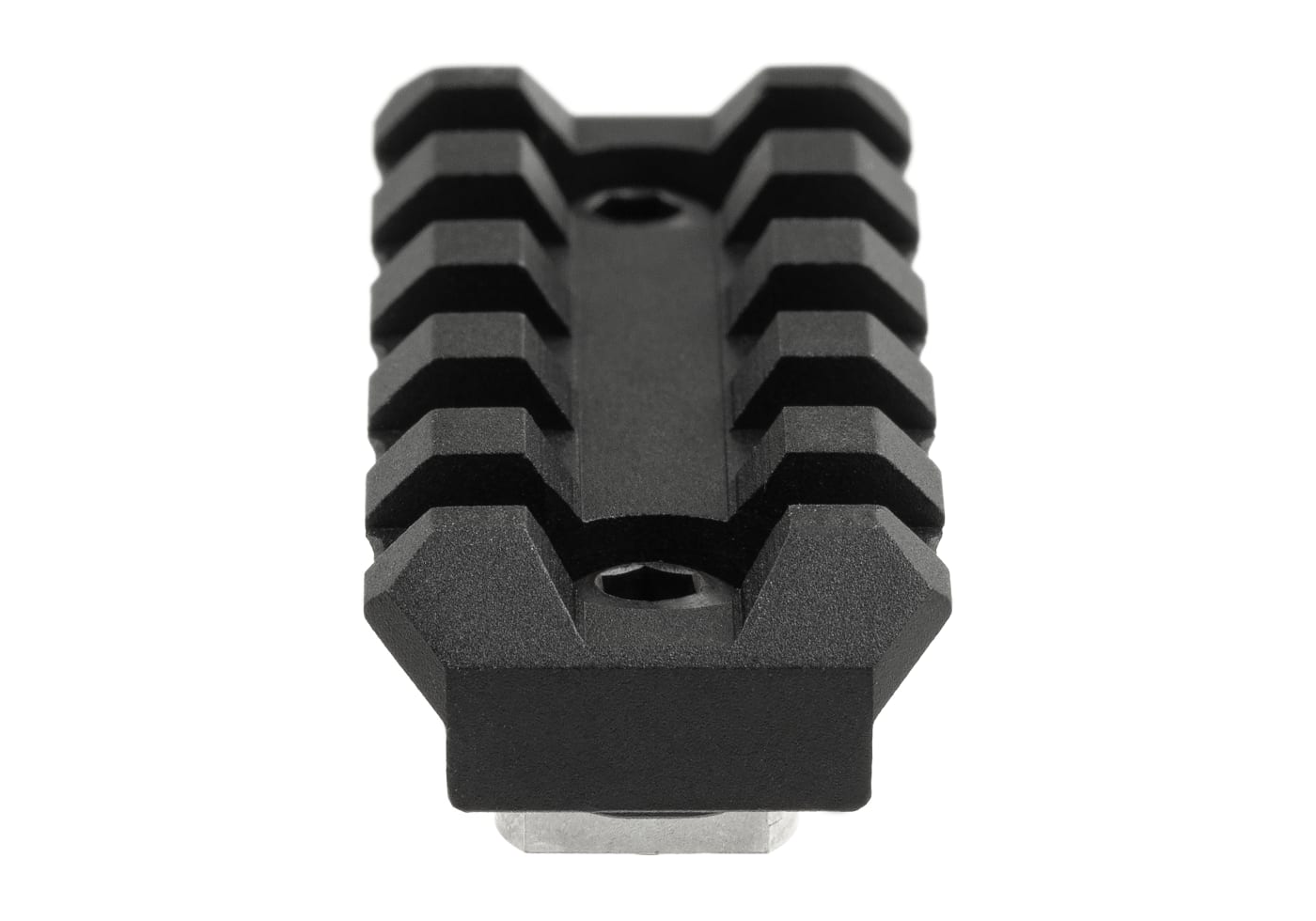

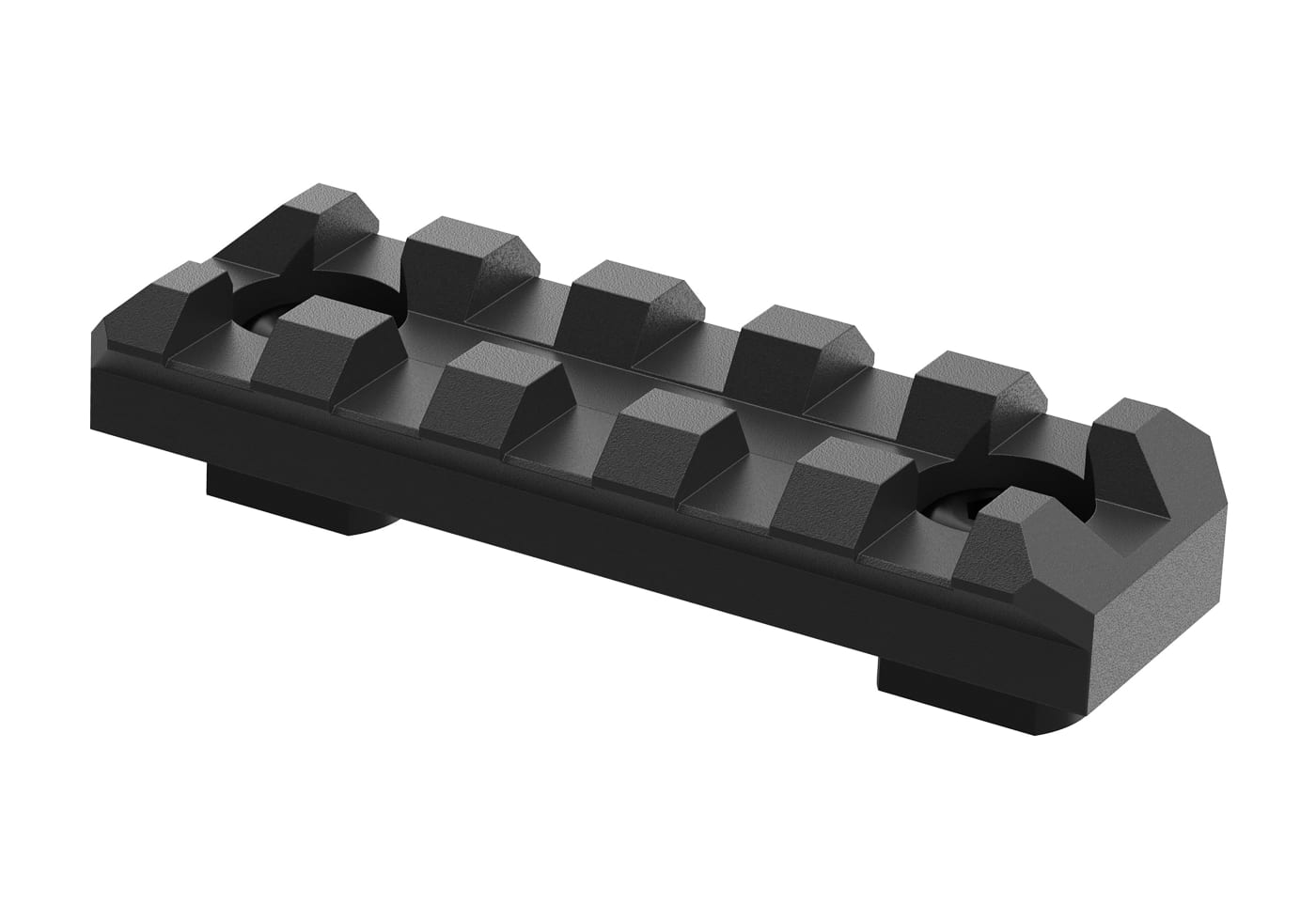

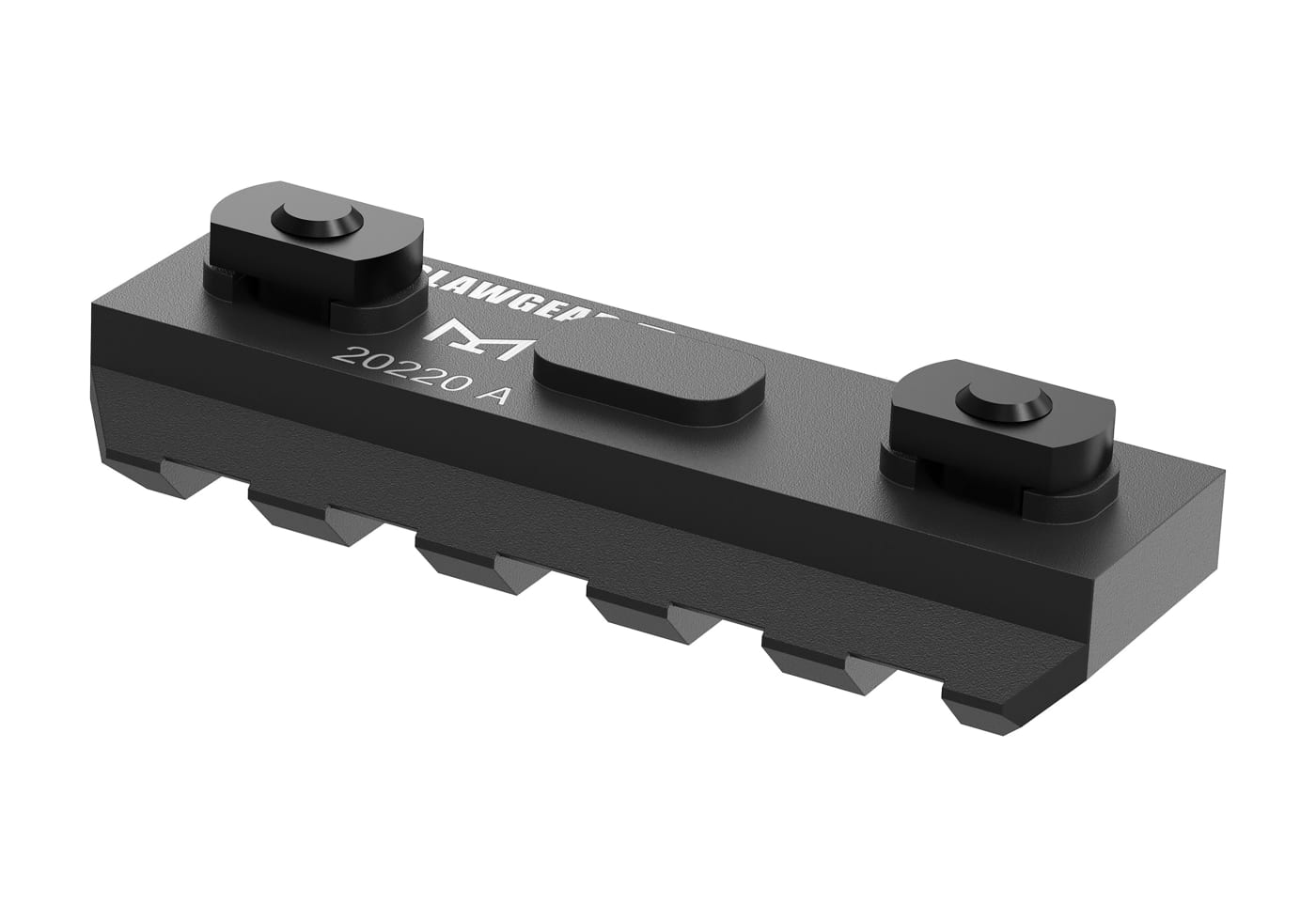

M-LOK Picatinny Rail – 5 Slots
The Clawgear M-LOK Picatinny Rail with 5 slots is an ultra-compact mounting platform for tactical accessories on M-LOK-compatible handguards. The Picatinny profile complies with NATO STANAG 4694 / Mil-Std 1913 and is ideal for attaching lights, remote switches, or backup sights.
Machined from high-strength aluminum and MIL-SPEC Type III hard anodized, the rail offers outstanding durability. Stainless steel T-Nuts ensure corrosion resistance, even after frequent use. Chamfered edges reduce the risk of snagging on gear or gloves.
Installation Note: Maximum torque: 4 Nm (35 in/lb). If no torque wrench is available, use the short end of the hex key for controlled tightening.
Technical Specifications
| Type | M-LOK Picatinny Rail (without QD) |
|---|---|
| Slots | 5 slots |
| Length | 2.05″ / 52 mm |
| Material | High-strength aluminum, stainless steel T-Nuts |
| Finish | Black, MIL-SPEC Type III hard anodized |
| Interface | Picatinny (NATO STANAG 4694), M-LOK compatible |
| Weight | 24 g |
| Included | Mounting screws & stainless steel T-Nuts |
| Features | Compact design, corrosion resistant, chamfered edges |
Dodatkowe informacje
- System szynowy:
- M-Lok, Szyna Picatinny
- Zakres dostawy:
- Klucz imbusowy
Wymiary i waga opakowania
- Długość:
- 5.8 cm
- Długość zapakowana:
- 14 cm
- Szeroki:
- 2.2 cm
- Szerokość zapakowana:
- 9.5 cm
- Wysokość:
- 1 cm
- Wysokość zapakowana:
- 1 cm
- Waga:
- 0.023 kg
- Waga w opakowaniu:
- 0.031 kg
