Clawgear
M-LOK 9 Slot Rail
Opis
M-LOK Picatinny Rail – 9 Slots

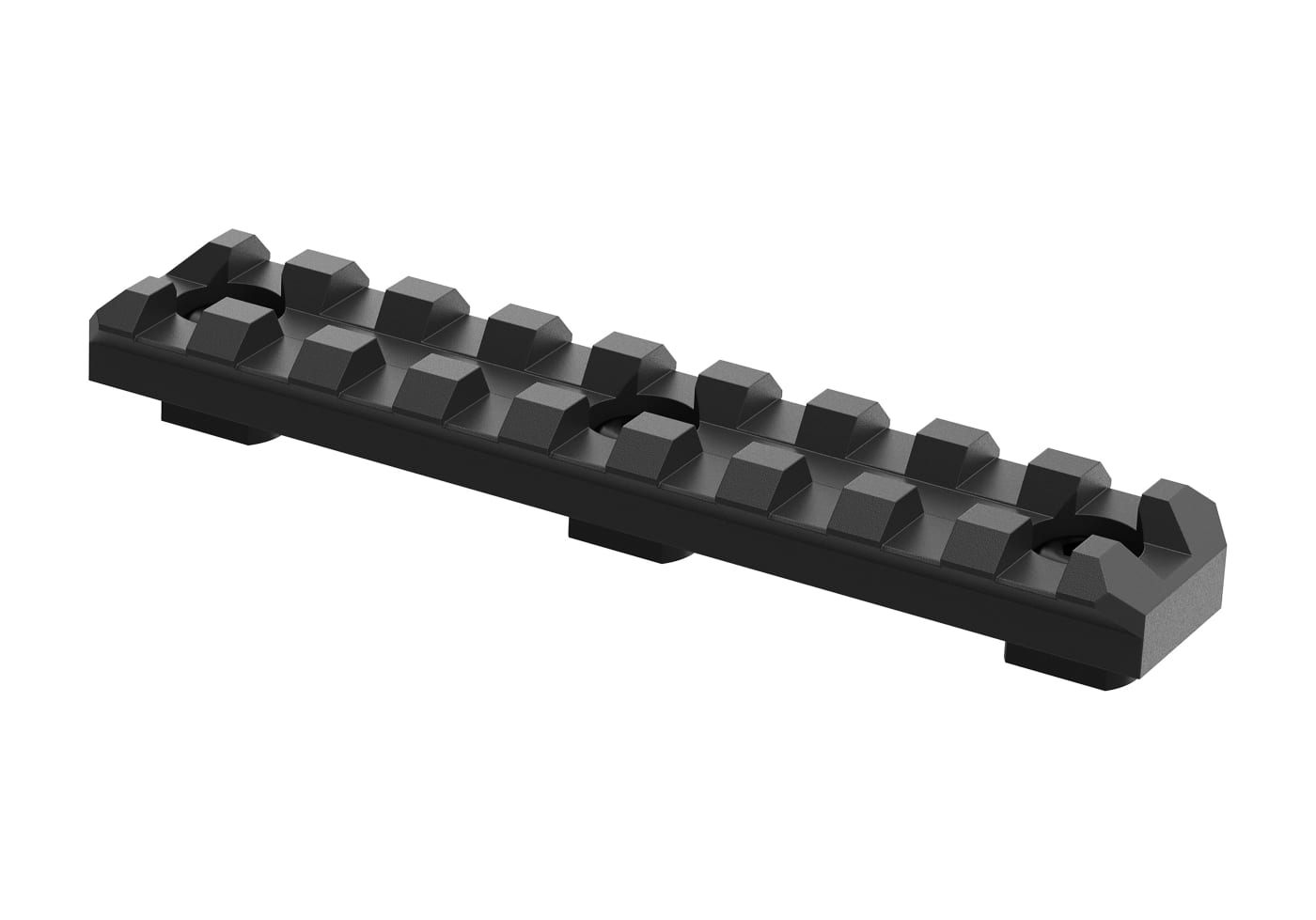

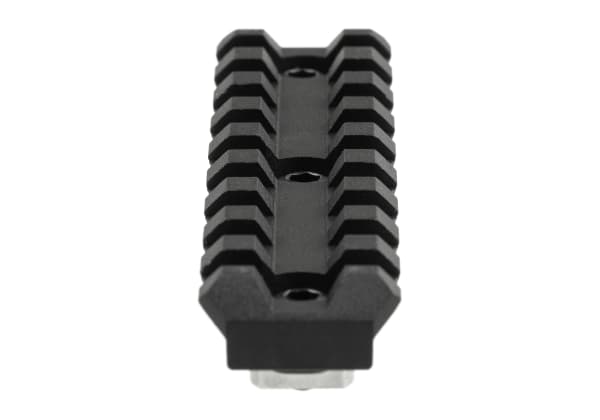

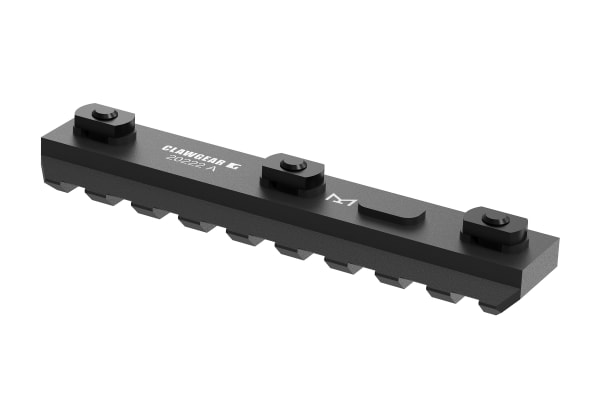

The Clawgear M-LOK Picatinny Rail with 9 slots is built for professional users who need a rugged and modular mounting platform for tactical accessories. Fully M-LOK compatible, it features a continuous Picatinny profile according to NATO STANAG 4694 / Mil-Std 1913 – ideal for attaching lights, vertical grips or switches.
Made from high-strength aluminum and MIL-SPEC Type III hard anodized, the rail offers excellent durability. The included stainless steel T-Nuts provide corrosion resistance even after frequent removal. Chamfered edges reduce snagging on gear or gloves.
Installation Note: Maximum torque: 4 Nm (35 in/lb). If no torque wrench is available, use the short end of the hex key for controlled tightening.
Technical Specifications
| Type | M-LOK Picatinny Rail (without QD) |
|---|---|
| Slots | 9 slots |
| Length | 3.86″ / 98 mm |
| Material | High-strength aluminum, stainless steel T-Nuts |
| Finish | Black, MIL-SPEC Type III hard anodized |
| Interface | Picatinny (NATO STANAG 4694), M-LOK compatible |
| Weight | 38 g |

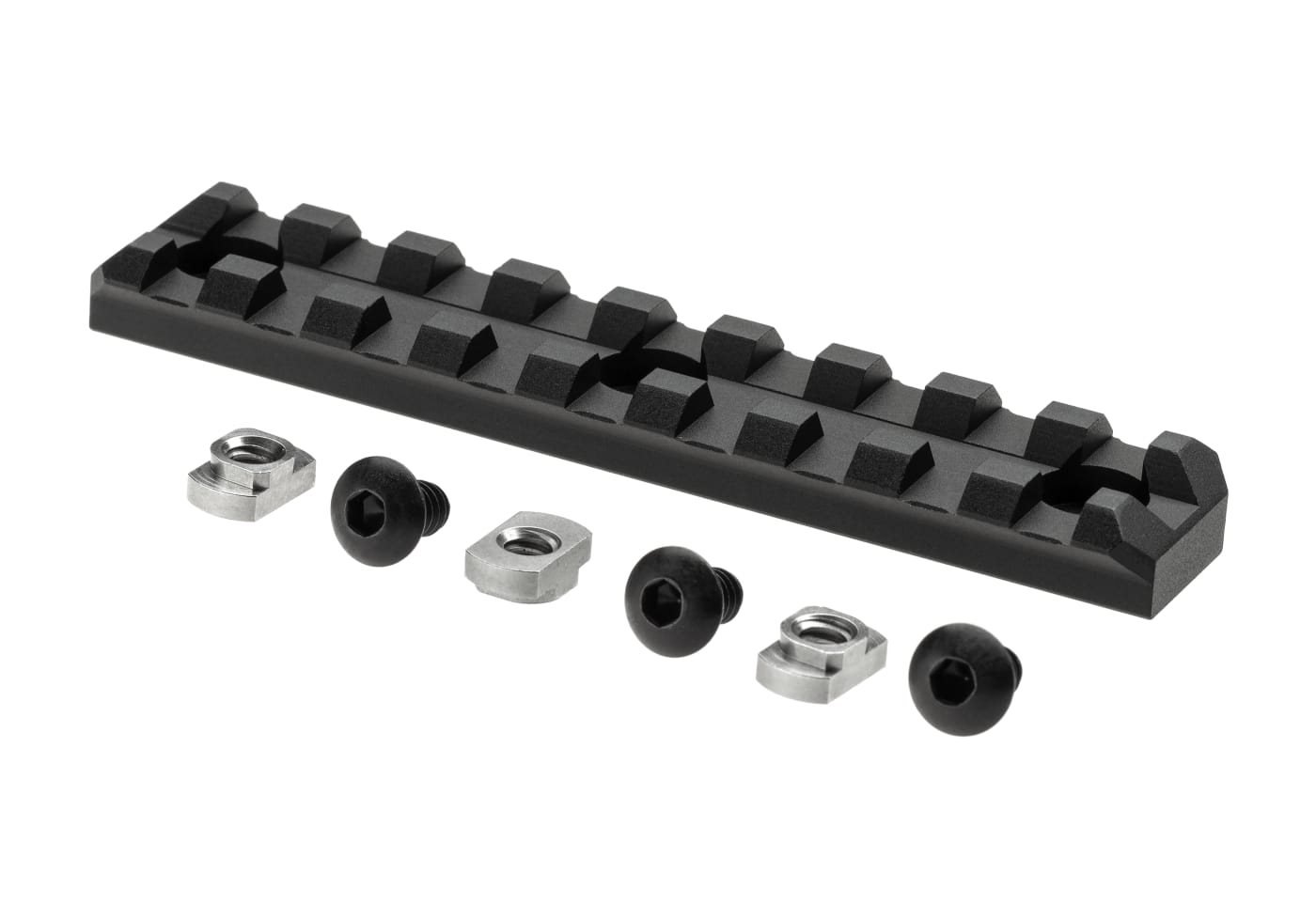

| Included | Mounting screws & stainless steel T-Nuts |
| Features | Chamfered edges, corrosion resistant |
Dodatkowe informacje
- System szynowy:
- M-Lok, Szyna Picatinny
- Zakres dostawy:
- Klucz imbusowy
Wymiary i waga opakowania
- Długość:
- 9.8 cm
- Długość zapakowana:
- 15.5 cm
- Szeroki:
- 2.2 cm
- Szerokość zapakowana:
- 9.3 cm
- Wysokość:
- 1 cm
- Wysokość zapakowana:
- 1 cm
- Waga:
- 0.038 kg
- Waga w opakowaniu:
- 0.054 kg
